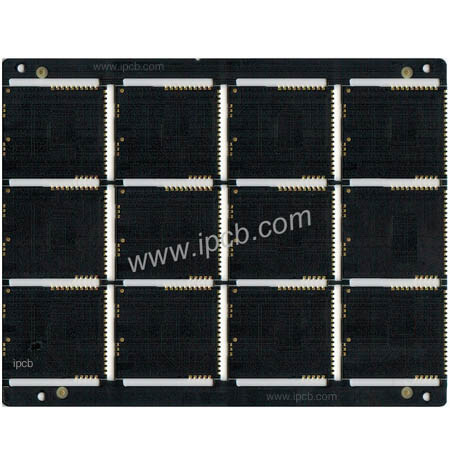

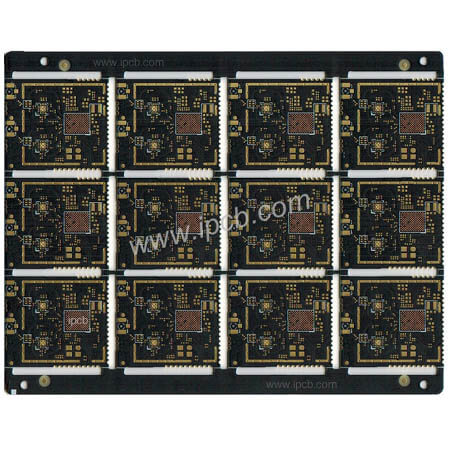

    4L HDI Wifi 無線模組

    品名: 4L HDI Wifi 無線模組

    Material:FR-4

    Layer :4L 1+N+1 HDI

    成品板厚:0.8mm

    鍍銅厚度 : 1oz (35μm)

    表面處理化學金+OSP

    最小線寬/ 線距 : 3/3 mil  ( 75 / 75 μm )

    孔徑: 雷射孔= 0.075mm,  機械孔= 0.1mm

    特殊製程: 半孔 + 板邊鍍銅

    產品應用 :Wifi 無線模組


    Product details Technical specification

    WiFi modules can be divided into three categories:

    1. General Wi Fi modules, such as mobile phones, laptops, and tablets

    The USB or SDIO interface module, Wi Fi protocol stack and driver run in Android, windows and IOS systems, and need a very powerful CPU to complete the application;

    2. Wi Fi module is a typical home router. The protocol and driver are based on the chip with powerful flash and ram resources and Linux operating system;

    3. Embedded Wi Fi module, 32-bit single chip microcomputer, built-in Wi Fi driver and protocol, interface for general MCU interface such as UART. Suitable for all kinds of smart home or smart hardware products.

    Many manufacturers have tried to add Wi Fi module into TV, air conditioning and other equipment to build wireless home intelligent system. To realize the control of app and the connection with internet giants such as Alibaba cloud, JD cloud and Baidu cloud, the home appliance manufacturers can quickly and conveniently realize the network intelligence of their products and realize the interconnection with more other appliances.


    Application

    Serial port (RS232 / RS485) to WiFi, TTL to WiFi;

    WiFi monitoring, TCP / IP and Wi Fi coprocessor;

    WiFi remote control aircraft, cars and other toy fields;

    WiFi network radio, camera, digital photo frame;

    Medical instruments, data acquisition, handheld devices;

    WiFi fat scale, smart card terminal; home intelligent;

    Instrument, equipment parameter monitoring, wireless POS machine;

    Other wireless related secondary development and application in modern agriculture and military fields
