Rogers RO3203,RO3206 and RO3210 material specification

Rogers ro3203, ro3206 and ro3210 high frequency PCB circuit materials are laminates with ceramic filler and reinforced by woven glass cloth. These materials were developed to provide exceptional electrical and mechanical stability at competitive prices. Rogers ro3200 series materials, as an extension of ro3000 series high frequency materials, have a very significant feature, that is, better mechanical stability.


The dielectric constant of Rogers ro3203 PTFE glass cloth is 3.02.The dielectric loss of the Rogers ro3203 is 0.0016, which extends the available frequency range to 40GHz. The dielectric constant of Rogers ro3206 PTFE ceramic glass cloth is 6.15, while that of ro3210 PTFE ceramic glass cloth is 10.2. The dielectric loss of Rogers ro3206 and Rogers ro3210 PTFE glass cloth is 0.0027.

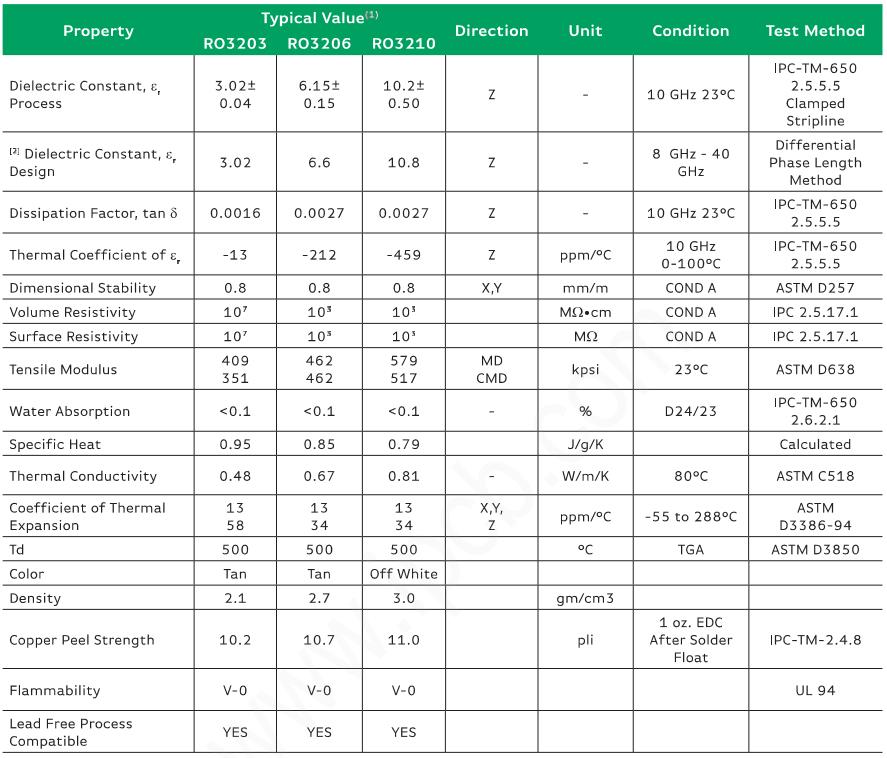

Rogers RO3203,RO3206 and RO3210 material specification

Rogers RO3203,RO3206 and RO3210 PCB  material specification

The advantages of Rogers ro3203, ro3206 and ro3210 high frequency PCB circuit materials are as follows:

High frequency performance extends the frequency range to more than 20GHz (ro3203 laminate), It is suitable for mixed press design of multilayer board with epoxy resin, The smooth material surface makes the etching line more accurate.


Application of Rogers ro3203, ro3206 and ro3210 high frequency PCB circuit materials:

Automobile anti collision system pcb, Automobile global positioning satellite antenna pcb, Wireless communication system pcb, Microstrip patch antenna in wireless communication pcb

ive satellite antenna pcb, Data connection in wired system pcb, Remote meter reading device pcb, Power backplane pcb, LMDS and wireless broadcasting pcb,base station infrastructure PCB .


If you need microwave radio frequency PCB, click here High frequency PCB.
