Rogers RO3003 PCB material specification

Material we used: Ceramic-filled PTFE Composite for Rogers RO3003, It's good at high temperature, operating at 10GHz and temperature changes from -50℃ to +150℃,DK can reach -3ppm/℃,The RO3003 amintains a high permittivity frequency stability and can be used in a wide frequecny rang. RO3003 laminates also show a very low DF(0.0013)AT 10GHz.

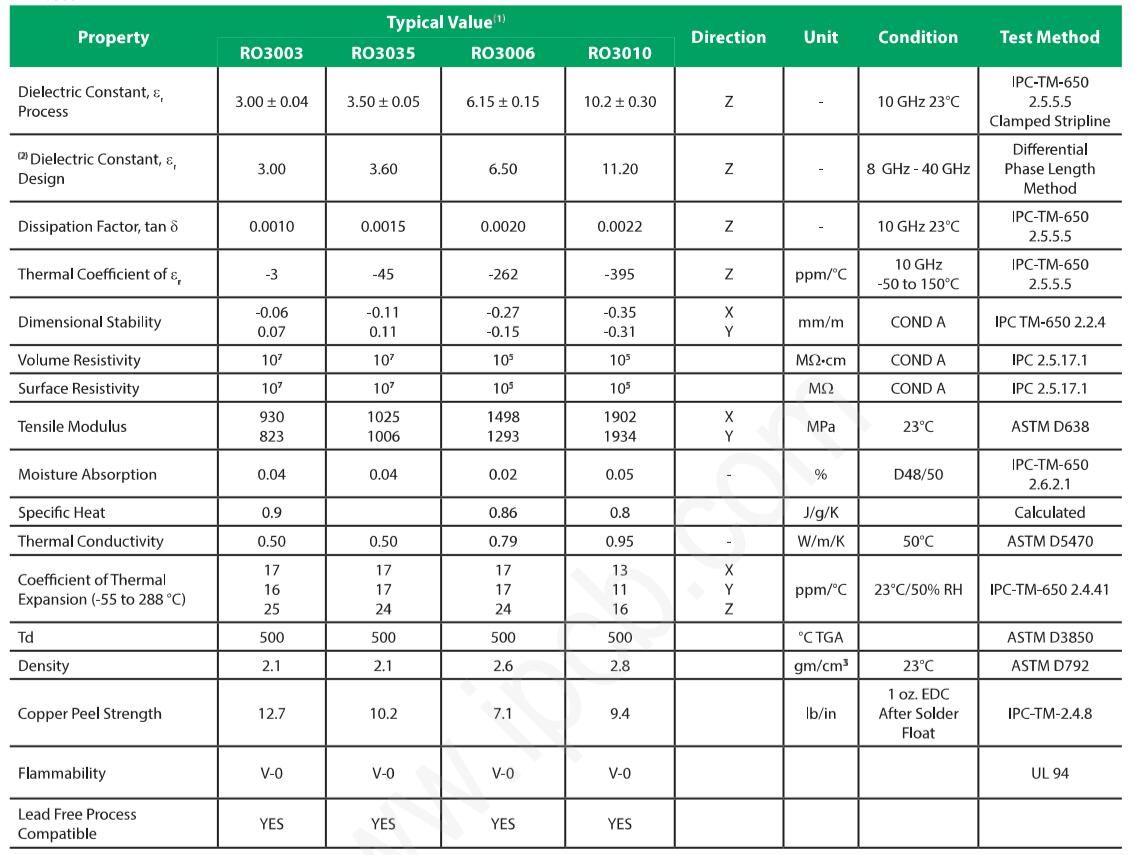

Rogers RO3003 PCB material specification .jpg

Rogers RO3003 PCB material specification


Microwave Circuit  application

printed circuit board(PCB) with radio frequency(RF PCB) are an increasingly used technique within the PCB industry.

--RF pcb with a high frequency with works above 100 MHz.


--Microwave Circuit  with works above 2 GHz radio frequency.

RF-pcb’s are used in different applications such as remote controls(wireless controls)security,smartphones,sensors etc.

New technologies make more and more use of these RF applications.

This asks for a manufacturing according to high quality standards and choosing the right RF materials depending on the application.

It is important that one knows the properties of the various materials.Choosing the right material is perhaps the most critical decision in the production process of the RF PCB.


ipcb  advantage

1. Quick respond,24 hours online service
2. No MOQ requirement

3. Diverse capabilities

4. Fast turnarounds available


If you need microwave radio frequency PCB, click here Microwave Circuit.
