Rogers PCB RO4835 material specification

The dielectric constant and loss factor of Rogers ro4835 and Rogers ro4350 are basically the same. The difference is that the plate Rogers ro4835 adds antioxidant filler on the basis of Rogers ro4350, and has passed the test of automobile safety regulations, which is suitable for the design of automotive anti-collision radar antenna.


Rogers PCB RO4835 material

Rogers RO4835 PCB material offer high stability at elevated temperatures and significant oxidation resistance.

RO4835 laminates are a low loss material that offer low cost circuit fabrication, compatible with standard epoxy/glass (FR-4) processes. These laminates are available with Rogers proprietary LoPro Reverse treated copper foil, ideal for applications requiring low insertion loss.

Rogers PCB RO4835 material

Rogers PCB RO4835 material

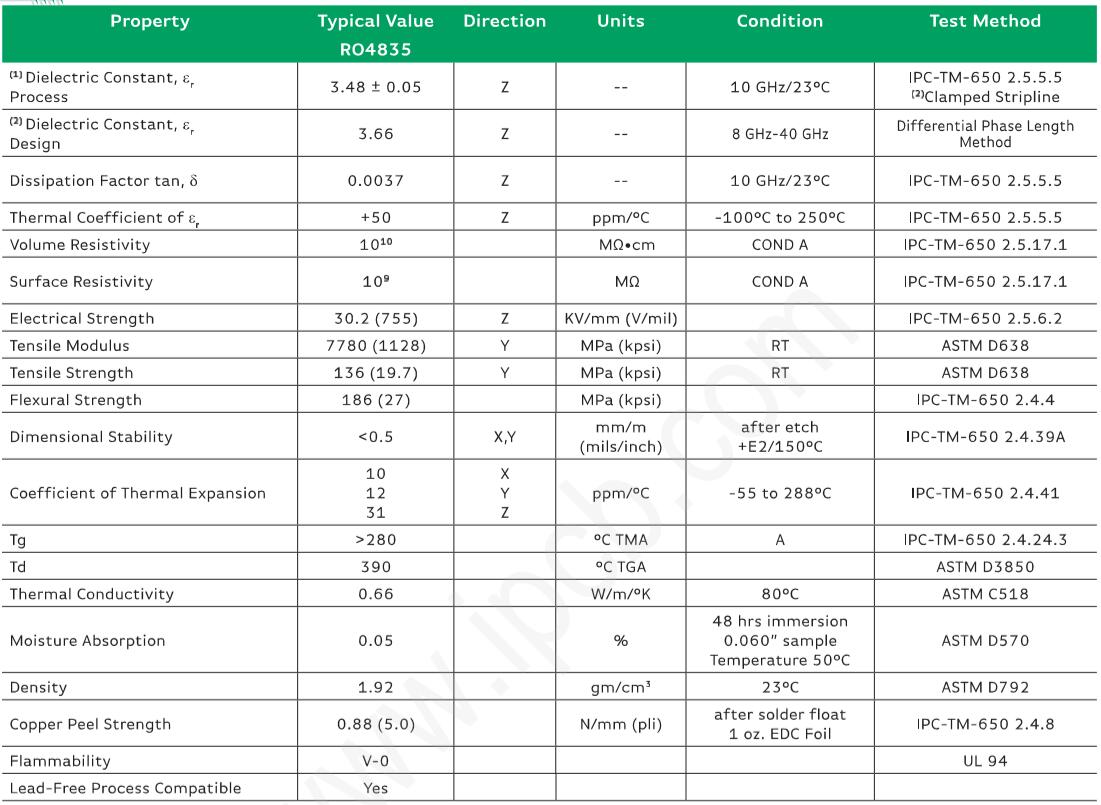

Features
RoHS compliant for applications requiring UL 94 V-0
IPC-4103 compliant
Dielectric constant (Dk) of 3.48 +/- .05
Dissipation factor of 0.0037 at 10 GHz


Benefits
Ten times improved oxidation resistance, compared to traditional thermoset laminates
Superior high frequency application compatibility due to excellent electrical performance
No blistering or delamination
Reliable Plated through Hole (PTH) construction



If you need microwave radio frequency PCB, click here Microwave Circuit.
