Rogers RO3010 PCB material specification

Rogers RO3010 PCB(Rogers 3010) material
Rogers RO3010 advanced circuit materials are ceramic-filled PTFE composites that offer a higher dielectric constant with excellent stability.

RO3010 laminates are competitively priced products with exceptional mechanical and electrical stability. This stability simplifies the design of broadband components and allows the materials to be used in a wide range of applications over a very broad range of frequencies. This material’s characteristics make RO3010 laminates excellent for circuit miniaturization.

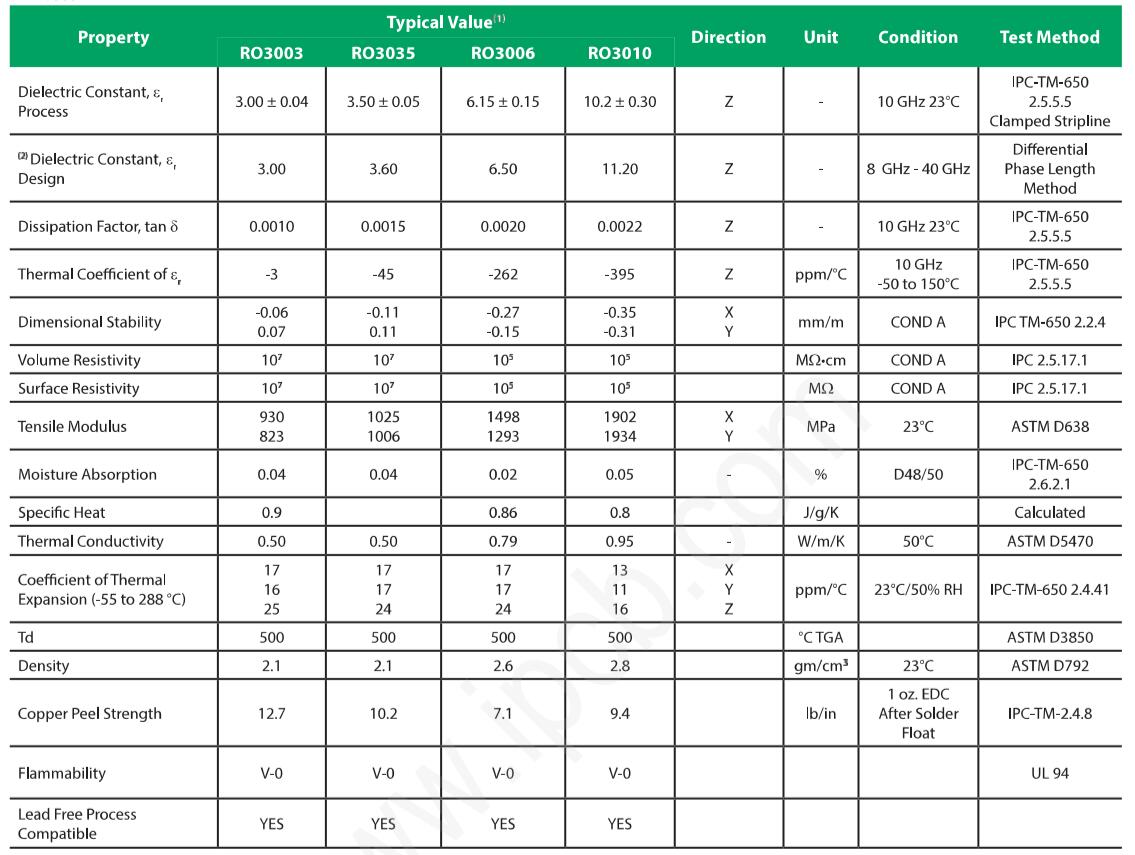

Rogers RO3010 PCB(Rogers 3010) material

Rogers RO3010 PCB(Rogers 3010) material

Features
Dk of 10.2 +/- .30
Dissipation factor of .0022 at 10 GHz
Low X, Y and Z axis CTE of 13, 11 and 16 ppm/°C, respectively


Benefits
Material exhibits dimensional stability with expansion coefficient matched to copper
ISO 9001 Certified
Suitable for use with multi-layer board designs


If you need microwave radio frequency PCB, click here Microwave Circuit.
