  • 12層2階 HDI 電路板

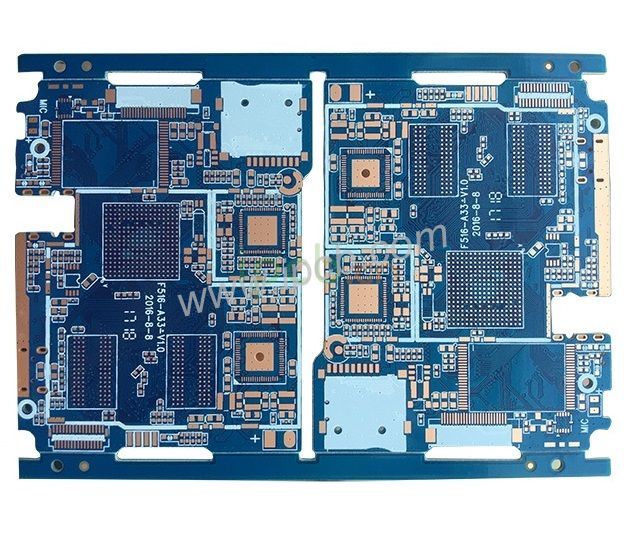

    12層2階 HDI 電路板

    品名: 12層2階 HDI 電路板

    基板:FR-4 ITEQ

    層別:12L

    疊構 :  2+8+2 HDI

    成品板厚:1.6m

    鍍銅厚度 : 1oz (35μm)

    表面處理化學金

    最小線寬/ 線距 : 3/3 mil  ( 75 / 75 μm )

    孔徑: 雷射孔= 0.1mm,  機械孔= 0.2mm

    產品應用 : 筆記型電腦




    Product details Technical specification

    Company introduction

    iPcb Circuits Limited(ipcb®.com) is a high-tech enterprise focus on the R&D  and production of high-end PCB. ipcb®.com has independently developed the  PCB automatic quotation and order system, which is the first in the industry,  and our final goal is the Internet + to build a smart PCB factory of industry 4.0, providing customers with professional PCB technology and production services.


    ipcb®.com Products:

    Radio/Microwave/Hybrid High Frequency , FR4 Double/Multi-Layer , 1~3+N+3 HDI,Anylayer HDI , Rigid-Flex , Blind Buried,  Blind Slot ,  Backdrilled ,IC ,Heavy Copper Board and etc.PCB apply for Industry 4.0,  Communication, Industrial Control, Digital,  Power supply, Computer, Automotive, Medical, Aerospace, Instruments, Military, Interne and other fields.


    RF PCB Manufacturing


    Surface finishing: OSP / ENIG / HASL LF / Plated gold / flash gold / Immersion Tin / Immersion silver / Electrolytic gold


    Capacity: Golden finger / Heavy copper / Blind buried via / impendance control / filled with resion / carbon ink / backdrill / countersink / depth drilling / half plated hole / pressfit hole / peelable blue    mask / peelable solderstop / thick copper / oversize


    Material: Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870 and Arlon / Isola / Taconic / PTFE F4BM / Teflon material etc.


    Layer: 2L 4L 6L 8L 10L 12L 14L 16L 18L 20L 22L 24L 26L 28L 30L


    Dielectric Constant (DK):  2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2


    Application: Consumer Electronics / Military/Space / Antenna & Communications System / High Power / Medical / Automotive / Industrial / Handheld device cellular / Wifi Antenna / Telematics and infotainment / Wifi/Computing/Radar/Power Amplifiers




    對於PCB技術問題,ipcb提供PCB技术的支持。您也可以在這里索取PCB報價。請聯繫郵箱: sales@ipcb.com

    我們會非常迅速地做出回應。

    品名: 12層2階 HDI 電路板

    基板:FR-4 ITEQ

    層別:12L

    疊構 :  2+8+2 HDI

    成品板厚:1.6m

    鍍銅厚度 : 1oz (35μm)

    表面處理化學金

    最小線寬/ 線距 : 3/3 mil  ( 75 / 75 μm )

    孔徑: 雷射孔= 0.1mm,  機械孔= 0.2mm

    產品應用 : 筆記型電腦
