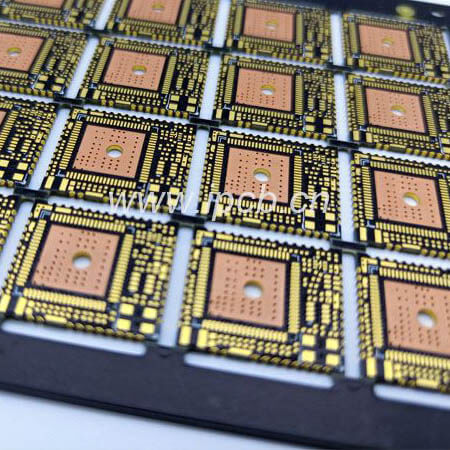

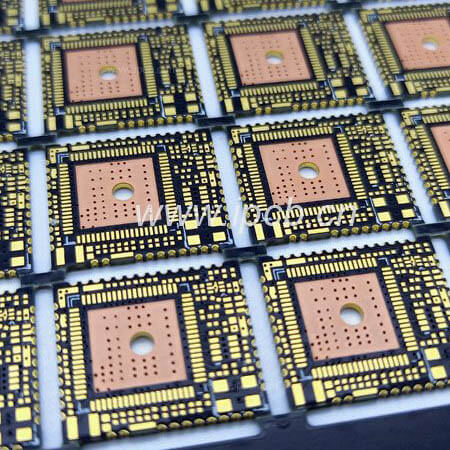

    WiFi 模組電路板

    品名: WiFi 模組電路板

    基板:  FR4

    層別 :  4L

    成品厚度 :  1.0mm

    鍍銅厚度 : 1oz (35μm)

    表面處理化學金

    最小線寬/ 線距 :   4/4 mil  ( 100 / 100 μm )

    特殊製程 : 半孔+  板邊鍍銅

    產品應用 : WiFi 模組電路板


    Product details Technical specification

    wifi module, also known as serial port Wi Fi module, belongs to the Internet of things transmission layer. Its function is to convert the serial port or TTL level into an embedded module conforming to Wi Fi wireless network communication standard, with built-in wireless network protocol ieee802.11b.g.n protocol stack and TCP / IP protocol stack. Traditional hardware devices embedded in Wi Fi module can directly use Wi Fi to connect to the Internet, which is an important part of the realization of wireless smart home, M2M and other Internet of things applications.


    wifi module pcb can be divided into three categories: 1. General Wi Fi module pcb, such as mobile phone pcb, notebook pcb, tablet pcb.

    The USB or SDIO interface module on the brain, Wi Fi protocol stack and driver run in Android, windows, IOS system, which requires a very strong CPU to complete the application; 2, the router scheme Wi Fi module, which is typically a home router, protocol and driver is with the help of chips with powerful flash and ram resources and Linux operating system; 3, embedded Wi Fi module, 32-bit single-chip microcomputer, in Set Wi Fi driver and protocol, interface for general MCU interface such as UART. Suitable for all kinds of smart home or smart hardware products.



    對於PCB技術問題,ipcb提供PCB技术的支持。您也可以在這里索取PCB報價。請聯繫郵箱: sales@ipcb.com

    我們會非常迅速地做出回應。

    品名: WiFi 模組電路板

    基板:  FR4

    層別 :  4L

    成品厚度 :  1.0mm

    鍍銅厚度 : 1oz (35μm)

    表面處理化學金

    最小線寬/ 線距 :   4/4 mil  ( 100 / 100 μm )

    特殊製程 : 半孔+  板邊鍍銅

    產品應用 : WiFi 模組電路板
