  • GPS 天線模組板

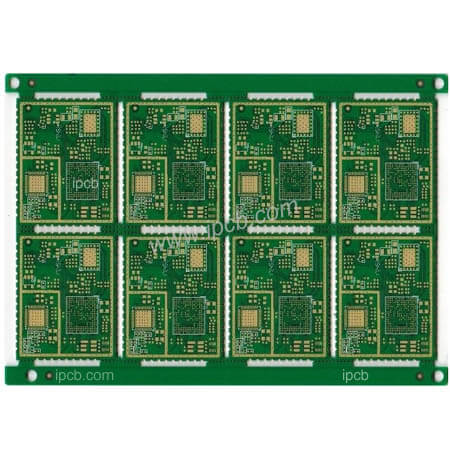

    GPS 天線模組板

    品名: GPS 天線模組板

    基板:  FR4

    層別: 2L

    成品板厚: 1.0mm

    鍍銅厚度 : 1oz (35μm)

    表面處理化學金

    最小線寬/ 線距 : 4/4 mil  ( 100 / 100 μm )

    產品應用 : GPS 天線模組板


    Product details Technical specification

    Vehicle GPS communication terminal, built-in GSM / GPRS module, can connect g-mouse products of different manufacturers through RS-232 port, with built-in Bluetooth communication and RFID interface (Bluetooth communication module and RFID module are designed as independent accessories to realize selection according to different customer needs). The product is mainly used in automobile.

    GPS antenna

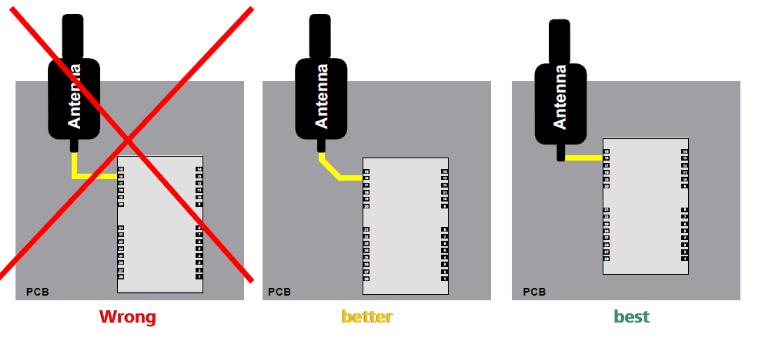

    Note the GPS antenna Layout



    ipcb Circuits Limited(ipcb®.com) is a high-tech enterprise focus on the R&D  and production of high-end PCB. ipcb®.com has independently developed the  PCB automatic quotation and order system, which is the first in the industry,  and our final goal is the Internet + to build a smart PCB factory of industry 4.0, providing customers with professional PCB technology and production services.


    ipcb manufactures various kinds of PCBs, including single-layer PCBs, double layer PCBs, multilayer PCBs, high TG FR-4 PCBs, heavy copper PCBs, impedance controlled PCBs, gold finger PCBs, plating gold PCBs, and some other PCBs according to customers’ requirements. All of the PCBs are RoHS compliant and environmentally friendly.


    ipcb offers advanced PCB manufacturing service meeting requirements of all industries, including Telecommunications; Medical; Military and Defense; Computer and Consumer Electronics; Automotive; LED Lighting, and so on.


    PCB Factory


     *For PCB production capability, please connect:  Double Multilayers PCB Techanics Capacity
