  • 無線藍芽電路板

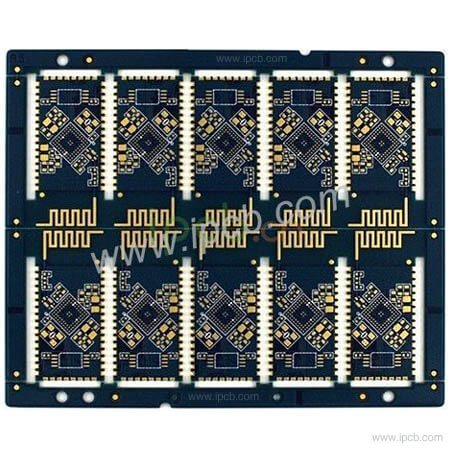

    無線藍芽電路板

    品名: 無線藍芽電路板

    基板 :  FR4

    層別: 2L

    成品板厚: 1.0mm

    鍍銅厚度 : 1oz (35μm)

    表面處理化學金

    最小線寬/ 線距 : 4/4 mil  ( 100 / 100 μm )

    產品應用 : 無線藍芽


    Product details Technical specification

    Company introduction

    iPcb Circuits Limited(ipcb®.com) is a high-tech enterprise focus on the R&D  and production of high-end PCB. ipcb®.com has independently developed the  PCB automatic quotation and order system, which is the first in the industry,  and our final goal is the Internet + to build a smart PCB factory of industry 4.0, providing customers with professional PCB technology and production services.



    Surface finishing: OSP / ENIG / HASL LF / Plated gold / flash gold / Immersion Tin / Immersion silver / Electrolytic gold


    Capacity: Golden finger / Heavy copper / Blind buried via / impendance control / filled with resion / carbon ink / backdrill / countersink / depth drilling / half plated hole / pressfit hole / peelable blue    mask / peelable solderstop / thick copper / oversize


    Material: Rogers RO4350B / RO3003 / RO4003 / RO3006 / RT/Duroid 5880 / RT5870 and Arlon / Isola / Taconic / PTFE F4BM / Teflon material etc.


    Layer: 2L 4L 6L 8L 10L 12L 14L 16L 18L 20L 22L 24L 26L 28L 30L


    Dielectric Constant (DK):  2.20 / 2.55 / 3.00 / 3.38 / 3.48 / 3.50 / 3.6 / 6.15 / 10.2


    Application: Consumer Electronics / Military/Space / Antenna & Communications System / High Power / Medical / Automotive / Industrial / Handheld device cellular / Wifi Antenna / Telematics and infotainment / Wifi/Computing/Radar/Power Amplifiers




    對於PCB技術問題,ipcb提供PCB技术的支持。您也可以在這里索取PCB報價。請聯繫郵箱: sales@ipcb.com

    我們會非常迅速地做出回應。

    品名: 無線藍芽電路板

    基板 :  FR4

    層別: 2L

    成品板厚: 1.0mm

    鍍銅厚度 : 1oz (35μm)

    表面處理化學金

    最小線寬/ 線距 : 4/4 mil  ( 100 / 100 μm )

    產品應用 : 無線藍芽



    對於PCB技術問題,ipcb提供PCB技术的支持。您也可以在這里索取PCB報價。請聯繫郵箱: sales@ipcb.com 我們會非常迅速地做出回應。
