Rogers RT/duroid 6002(rogers 6002) material specification

The development of Rogers RT/Duroid 6002 (r=2.94) was introduced in the 1980s. The material is characterized by superior temperature stability of dielectric constant and thermal expansion coefficient of dielectric constant, which is used to improve the defects of PTFE substrate. This product is ideal for applications where the ambient temperature changes rapidly. Due to its low dielectric loss and high reliability of metallized vias, it can be used in higher frequency PCB and mixed multilayer PCB.


Rogers PCB RT/duroid 6002(rogers 6002) material
Rogers RT/duroid 6002 laminates are low dielectric constant microwave materials for use in complex microwave structures.

RT/duroid 6002 laminates are low loss materials that provide excellent high frequency performance. With excellent mechanical and electrical properties, these materials are reliable for use in multi-layer board constructions.

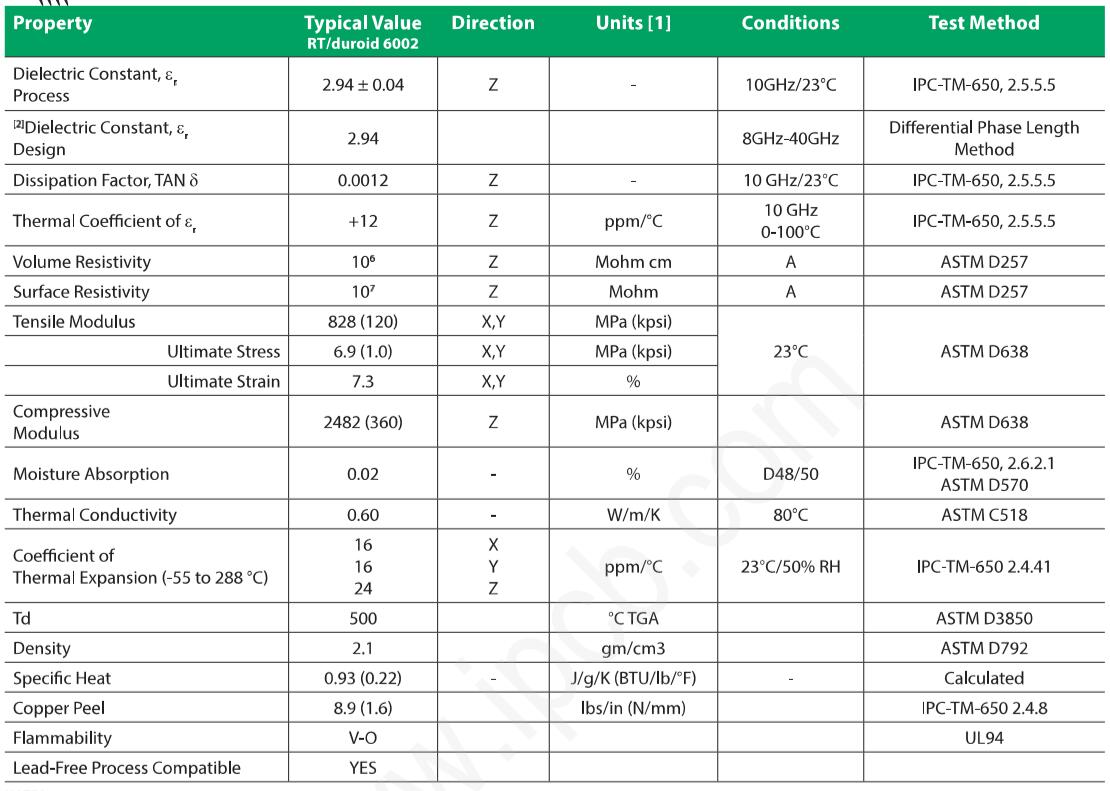

Rogers  RT6002 PCB material

Rogers  RT6002 PCB material

Features
Dielectric constant (Dk) of 2.94 +/- .04
Low thermal coefficient of Dk at 12 ppm/°C
Dissipation factor of .0012 at 10GHz
Low Z-axis coefficient of thermal expansion at 24 ppm/°C


Benefits
Low loss for excellent high frequency performance
Tight thickness control
In-plane expansion coefficient matched to copper
Low out-gassing; Ideal for space applications
Excellent dimensional stability
