Rogers RO3000 Series: RO3003,RO3006,RO3035,RO3010 material specification

RO3000 Series laminates are circuit materials with consistent mechanical properties, regardless of the dielectric constant (Dk) selected.

This allows the designer to develop multilayer board designs that use different dielectric constant materials for individual layers, without encountering war-page or reliability problems. Additionally, the RO3000 series' dielectric constant is stable over a wide temperature range.

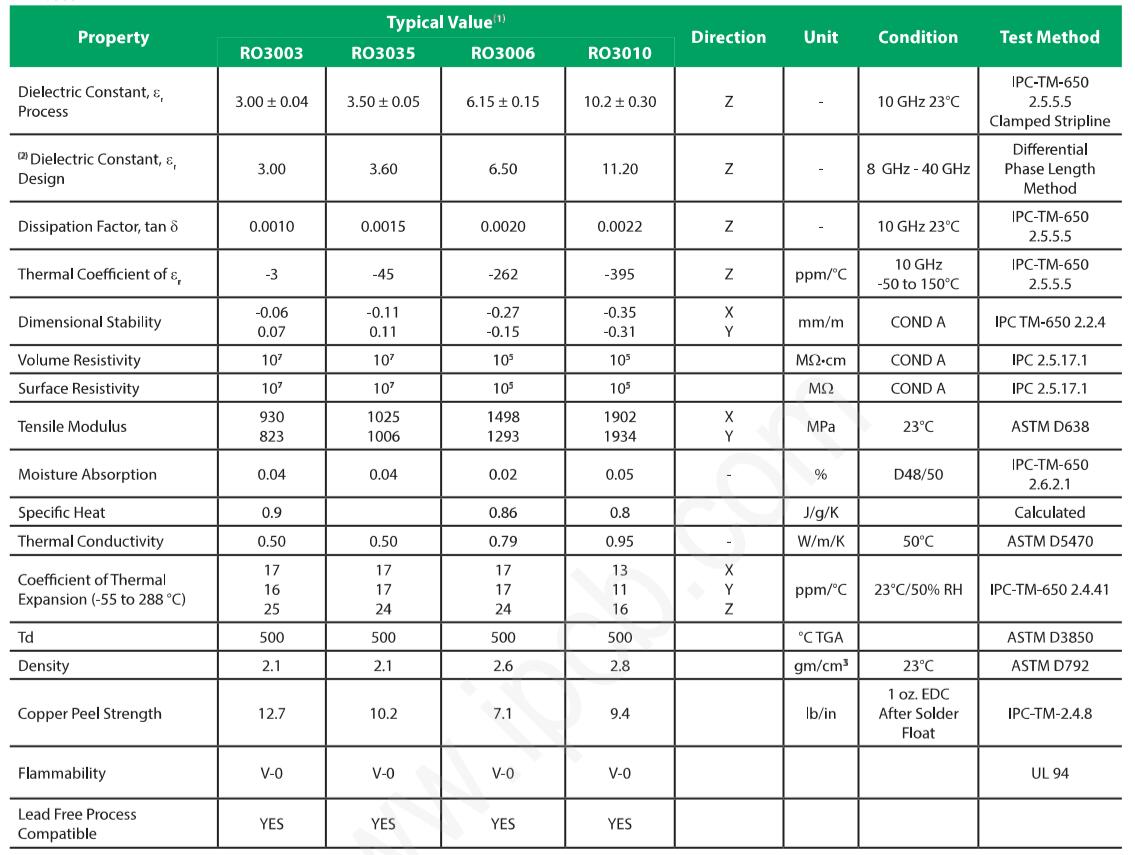

Rogers RO3000 Series: RO3003,RO3006,RO3035,RO3010 material specification

Rogers RO3000 Series: RO3003,RO3006,RO3035,RO3010 material specification

Benefits

  • - Lowest loss commercial laminates

  • - Available in a wide range of Dk (3.0 to 10.2)

  • - Available both with and without woven glass reinforcements

  • - Low Z-axis CTE provides plated through-hole reliability


If you need microwave RF PCB, click here Microwave Circuit.
